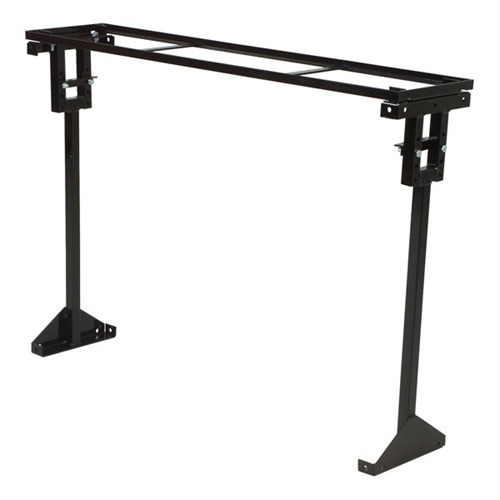

Lets you design the tank layout to fit YOUR preferred work flow and available shop space. Set up end-to-end, corner-to-corner, side-to-side or overlap side-to-end, then bolt together using the pre-spaced, pre-drilled holes. Puts the top of a 6" x 6" x 40" tank 3' from the floor. Allows good flame travel across the tank bottom and up the sides. Easily supports a tank full of salts and work pieces. Saves hours of construction time. Partially assembled. Can go UPS.
SPECS: 41" (104.1cm) long. 8¼" (22.2cm) wide. 28¾" (73.0cm) high. ¾" (19.0mm) angle rails, 1" (2.5cm) x 15/8" (4.1cm) angle ends, 1" (2.5cm) sq. legs. 5/16" (7.9mm) diameter mounting/assembly holes. Includes Stand, pipe burner lock-downs, 3 Interlocking Bars and Assembly Bolts with nuts and washers. Detailed Instructions include fully diagramed assembly options.
Ermöglicht dir, das Layout des Tanks so zu gestalten, dass es deinem bevorzugten Arbeitsablauf und dem verfügbaren Platz in der Werkstatt entspricht. Stelle ihn end-zu-end, eck-zu-eck, seitlich oder überlappend von Seite zu Ende auf und schraube sie dann mit den vorgebohrten Löchern zusammen. Die Oberseite eines 6" x 6" x 40" Tanks befindet sich 3 Fuß über dem Boden. Ermöglicht eine gute Flammenverteilung über den Tankboden und die Seiten. Unterstützt problemlos einen Tank voller Salze und Werkstücke. Spart Stunden an Bauzeit. Teilweise montiert. Kann mit UPS versendet werden.
SPECS: 41" (104,1cm) lang. 8¼" (22,2cm) breit. 28¾" (73,0cm) hoch. ¾" (19,0mm) Winkelschienen, 1" (2,5cm) x 15/8" (4,1cm) Winkelende, 1" (2,5cm) quadratische Beine. 5/16" (7,9mm) Durchmesser Montageschrauben. Enthält Ständer, Rohrbrenner-Sicherungen, 3 ineinandergreifende Stangen und Montageschrauben mit Muttern und Unterlegscheiben. Detaillierte Anleitungen enthalten vollständig diagrammierte Montageoptionen.
